Pro is available as a preview build, 0.2.0-SNAPSHOT. Snapshots are published often until the 0.2.0 release, and the download link below always gives you the latest one.

Pro is the Knowledge Base and the sources that feed it: your Git repositories, Confluence and Jira, and Bitbucket. It also has the AI providers, the jobs and scheduler that run Knowledge Base flows, and an MCP server through which your AI client reads and writes the Knowledge Base. Trello is an optional extra: install it from the registry (see Plugins).

Requirements

  • Python 3.13 or later on your PATH. On macOS and Linux the launcher looks for python3.14, python3.13 and python3, in that order; on Windows for py -3.14, py -3.13 and python. It uses the first that is 3.13 or later, and stops with a message if there is none.
  • Internet access on the first run, to install the dependencies from PyPI.
  • Git on your PATH, for the Git features.
  • unzip, or any other way to extract a zip file, and curl if you download from the command line.

Getting Python 3.13

Install Python 3.13 from python.org and tick Add python.exe to PATH in the installer. Or, from a terminal:

winget install Python.Python.3.13

Open a new terminal and check:

python --version

If python opens the Microsoft Store instead, Python is not on your PATH yet: run the installer again with Add python.exe to PATH ticked.

Install Python from python.org, or with Homebrew:

brew install python

Check that python3 is 3.13 or later:

python3 --version

Ubuntu 24.04 ships Python 3.12, which is too old; the bare ubuntu:24.04 container image has no Python at all. Install 3.13 from the deadsnakes PPA, along with git, curl and unzip. python3.13-venv is required:

export DEBIAN_FRONTEND=noninteractive
sudo -E apt-get update
sudo -E apt-get install -y software-properties-common
sudo -E add-apt-repository -y ppa:deadsnakes/ppa
sudo -E apt-get install -y python3.13 python3.13-venv git curl unzip

DEBIAN_FRONTEND=noninteractive stops the installation from halting to ask for your time zone. In a container where you are root, leave out sudo -E. Check:

python3.13 --version

If your system has a python3 at 3.12, leave it: Ubuntu itself depends on it, and the launcher finds python3.13 by itself.

Download

Download Pro (.zip) All downloads on GitHub

Install and start

  1. Unzip the bundle into a folder of its own, anywhere on your machine. The zip has no folder inside it, so extracting it in place scatters its files. On the command line:

    curl -LO https://raw.githubusercontent.com/roadmap-mcp/roadmap-dist/main/install/roadmap-pro.zip
unzip roadmap-pro.zip -d roadmap-pro
cd roadmap-pro

  2. Start it:

    Double-click start.bat, or run it from a terminal.

    bash start.sh

  3. Open http://localhost:8090.

  4. Create the root user. The first visit shows Create the root user: keep the user name root or type another, choose a password of at least 8 characters, enter it again under Confirm password, and click Create and sign in. The root user is the admin who adds everyone else (see Users and roles).

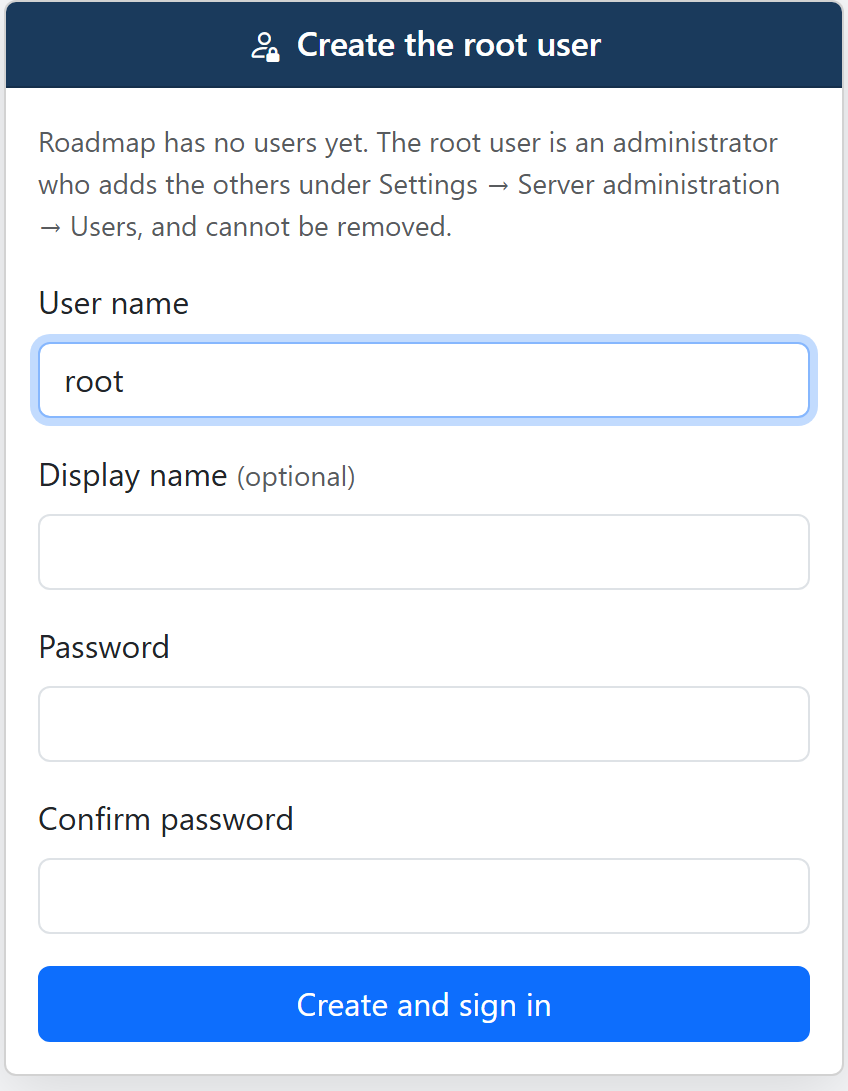

    The Create the root user screen

  5. Choose the encryption password. Next, an Unlock Configuration dialog asks for one under First-time setup, as Encryption password; enter it twice to confirm it. Roadmap encrypts the secrets you store with it, such as AI keys and access tokens. It is not the root user's password, and it can't be recovered: keep it safe. An admin enters it again after every restart, unless you set ROADMAP_KEY (see Environment variables).

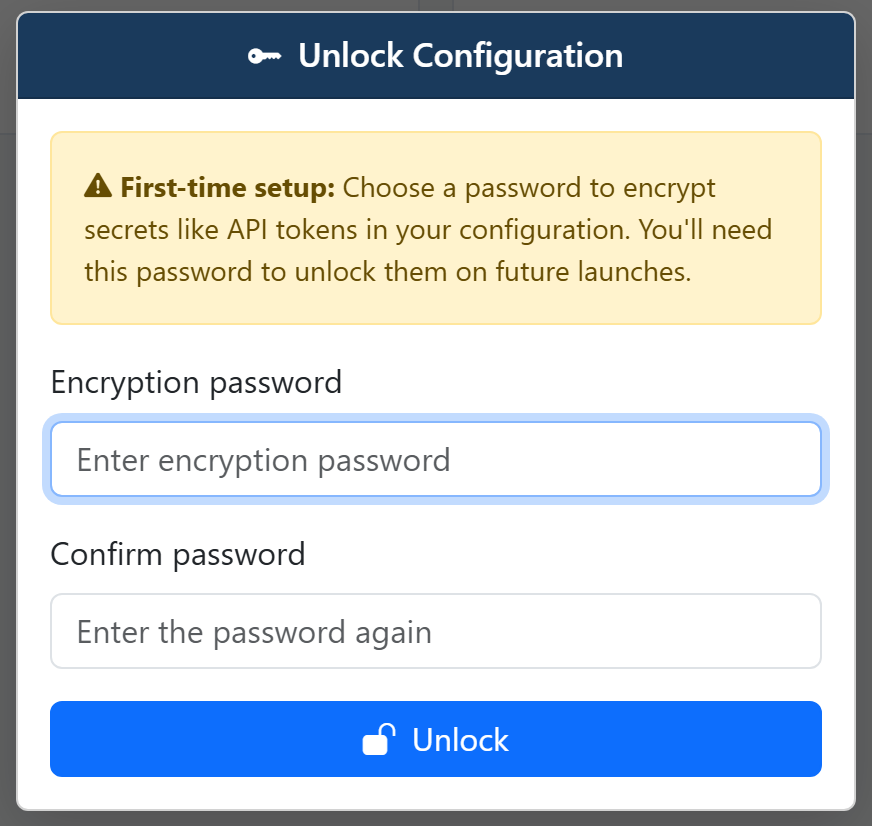

    The Unlock Configuration dialog on the first start

From then on, every visit starts at the sign-in screen.

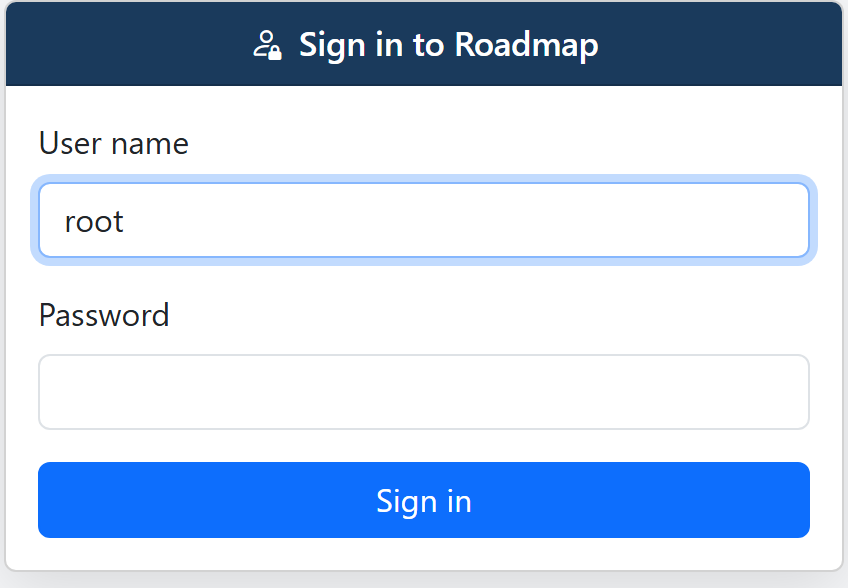

The Sign in to Roadmap screen

Once signed in, the settings are in the header (see Where the settings are).

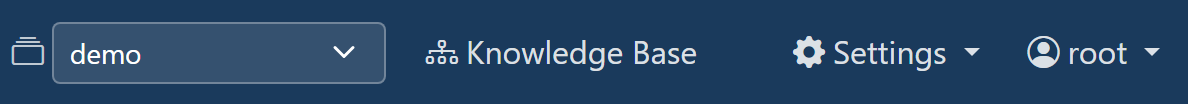

The header: workspace, Knowledge Base, Settings and the user menu

The first run creates a .venv folder next to the launcher and installs the bundled plugins into it, plus their dependencies from PyPI. That takes a few minutes and needs internet access. Later runs reuse it and start at once. Stop the app with Ctrl+C in its terminal.

In a container, or on another machine

Roadmap only listens on 127.0.0.1 by default, so it can't be reached from outside a container or from another machine. Start it with ROADMAP_HOST=0.0.0.0 (see Environment variables), and publish the port when you run the container, for example docker run -p 127.0.0.1:8090:8090 .... Read the warning there first. To let Roadmap read your Git repositories, mount the folder that holds them into the container, and set that path as the checkout folder on the server (see Configuring Git).

Update to a newer build

  1. Stop Roadmap: Ctrl+C in its terminal.
  2. Unzip the new build over the same folder, replacing the files that are there.
  3. Start it again with start.bat or bash start.sh.

The start script sees that the build is new, says Updating Roadmap to ..., and reinstalls the bundled plugins. Your config.yaml, workspaces and data are kept, and so are the plugins you added from the registry.

To force a full reinstall instead, delete .venv/.installed and start again.

Where your data lives

Roadmap keeps its configuration in config.yaml, with the Knowledge Base and the rest of its data next to it. Without further settings that is backend/config.yaml inside the unzipped folder. Other workspaces get their own workspaces/<name>/config.yaml beside it.

To keep your data outside the install folder, so a newer snapshot can replace the folder without touching it, point ROADMAP_CONFIG_PATH at a config.yaml of your choosing. Its folder is created if it doesn't exist. Use an absolute path: a relative one is taken relative to the backend folder, because the launcher starts Roadmap from there.

Environment variables

Variable Default What it does
ROADMAP_CONFIG_PATH backend/config.yaml The configuration file; data is kept next to it.
ROADMAP_HOST 127.0.0.1 The address to listen on. 0.0.0.0 makes Roadmap reachable from other machines, or from outside a container.
ROADMAP_KB_PACK_REGISTRY_URL roadmap-dist's kb-packs/index.json Where the app finds Knowledge Base packs.
ROADMAP_KEY none Your password. Secrets in the configuration are encrypted with it; set it to unlock them at startup instead of in the browser.

Set them in the terminal before you start the launcher:

set ROADMAP_CONFIG_PATH=D:\roadmap-data\config.yaml
set ROADMAP_HOST=0.0.0.0
start.bat

export ROADMAP_CONFIG_PATH=~/roadmap-data/config.yaml
export ROADMAP_HOST=0.0.0.0
bash start.sh

Before you open Roadmap to other machines

Everyone signs in (see Users and roles), but Roadmap serves plain HTTP: passwords, sessions and API tokens cross the network unencrypted. Once the configuration is unlocked, an admin's settings page also shows every stored secret in readable form: AI provider keys, Atlassian tokens, Git credentials.

Keep the default, 127.0.0.1, unless you need otherwise. Only use ROADMAP_HOST=0.0.0.0 inside a container whose port you publish to your own machine only (-p 127.0.0.1:8090:8090), on a network you trust, or behind a reverse proxy that adds HTTPS.

Connect an AI client

Roadmap serves its tools over MCP, using SSE, at http://127.0.0.1:8090/mcp/sse. A client needs an API token of a user with the editor role or higher:

  1. Under Personal settings → Account (the user menu: your name in the header), give a new token a name and click New token (see API tokens).
  2. Copy the token: it is shown once. Next to it is the Claude Code command below, with the token filled in.
  3. Add Roadmap to your client with the token in place of <token>.
claude mcp add-json -s user roadmap '{"type":"sse","url":"http://127.0.0.1:8090/mcp/sse","headers":{"Authorization":"Bearer <token>"}}'

-s user makes Roadmap available in every project. Check it with claude mcp list, which should show roadmap as Connected. If you put the server in a project's .mcp.json instead, Claude Code shows it as Pending approval until you start claude in that project and approve it.

Add it to the client's MCP configuration file; where that file lives depends on the client:

{
  "mcpServers": {
    "roadmap": {
      "type": "sse",
      "url": "http://127.0.0.1:8090/mcp/sse",
      "headers": { "Authorization": "Bearer <token>" }
    }
  }
}

Failed to connect?

Claude Code shows one of two messages, for SSE and for HTTP alike.

With no token in the configuration:

✘ Failed to connect — Dynamic Client Registration rejected (HTTP 404): {"detail":"Not Found: Roadmap takes API tokens (Authorization: Bearer), not OAuth"}

This is always the case for a client set up before snapshot 12, which had no tokens.

With a wrong token, for example one that was revoked:

Server rejected the configured Authorization header (HTTP 401)

The fix is the same for both: remove the client, make a token, and add it again with the headers part: claude mcp remove roadmap -s user, then the command above. A 403 forbidden means the token's user is a viewer: an admin has to make them an editor.

Ask the client to run kb_read with action="status" to check that it works; the Pro edition pages describe what it can do from there.

The stateless endpoint

Roadmap also serves MCP at http://127.0.0.1:8090/mcp, over plain HTTP: every call is one request, so it survives a restart of Roadmap without reconnecting. It offers a single tool, roadmap, that runs any of the tools by name: call it with a command and its args, such as {"command": "kb_read", "args": {"action": "status"}}, and {"command": "help"} lists them all. Use it when your client keeps losing the SSE connection, or when you'd rather not have every tool in the client's tool list.

claude mcp add-json -s user roadmap '{"type":"http","url":"http://127.0.0.1:8090/mcp","headers":{"Authorization":"Bearer <token>"}}'

{
  "mcpServers": {
    "roadmap": {
      "type": "http",
      "url": "http://127.0.0.1:8090/mcp",
      "headers": { "Authorization": "Bearer <token>" }
    }
  }
}

Add one of the two endpoints, not both.
